2026 Alpha HD A80MG Double Drop
- Trailer - Alpha HD
- A80MG
- Double Drop

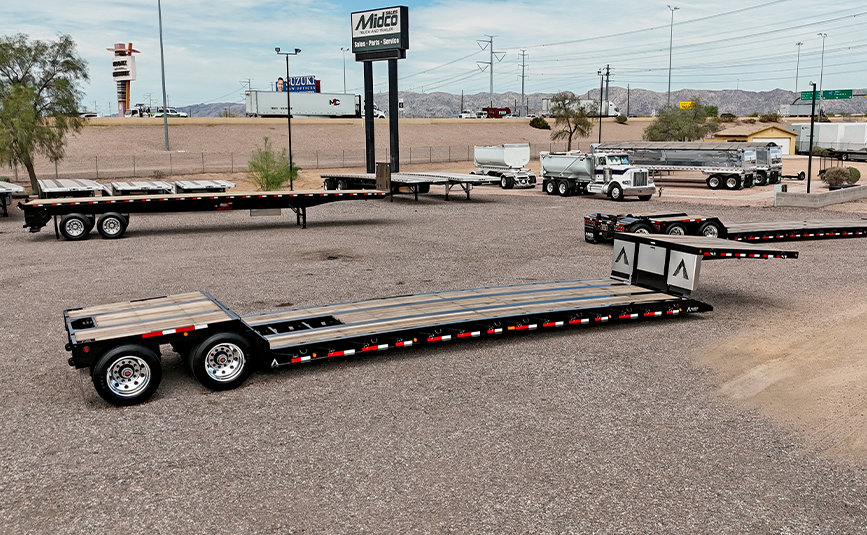

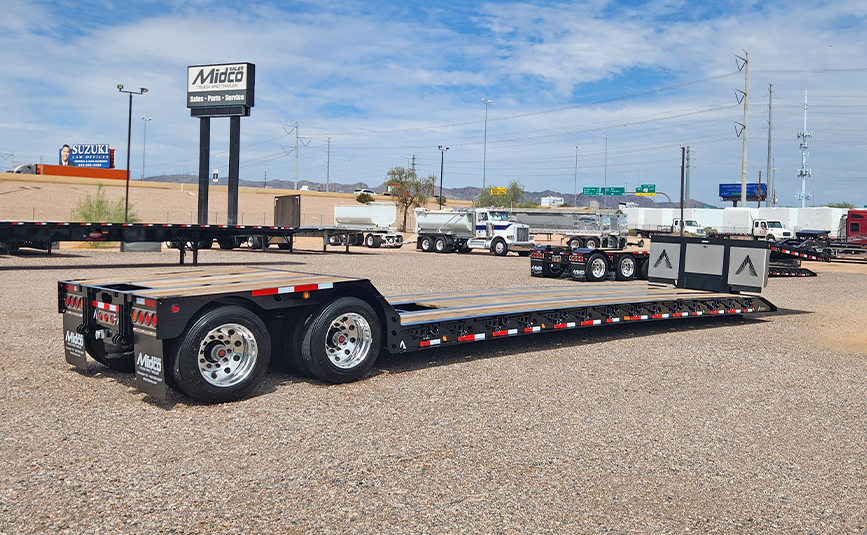

2026 Alpha HD A80MG Double Drop Trailer For Sale– 40 Ton Capacity, 48' Length
Midco Sales has a new Alpha HD A80MG double drop trailerfor sale. Designed for heavy-duty hauling, this 48-foot trailerboasts an impressive 80,000 lb capacity, with 70,000 lbs concentrated over 16 feet. The 29' main deck sits at an ultra-low loaded height of just 18", offering 6" ground clearance—ideal for transporting tall or oversized equipment without permits in many cases.
Additionally, the Alpha HD A80MG features a mechanical detachable gooseneckwith toolbox and LED work lighting, along with a durable full-width Apitong deck. Moreover, this trailer includes a 2-axle Cush air ride suspension, polished aluminum outer wheels, and enhanced lighting for visibility and safety.
Whether you're hauling construction equipment, agricultural machinery, or other tall loads, this Alpha HD trailerdelivers the strength and functionality professionals rely on. Because it’s an Alpha HD, you can count on long-term durability and American-made quality.
Now available at Midco Sales, your authorized Alpha HD trailer dealer in Arizona .
DIMENSIONS
- Length: 48'
- Width: 102"
CAPACITY
- 80,000 lbs (70,000 lbs in 16')

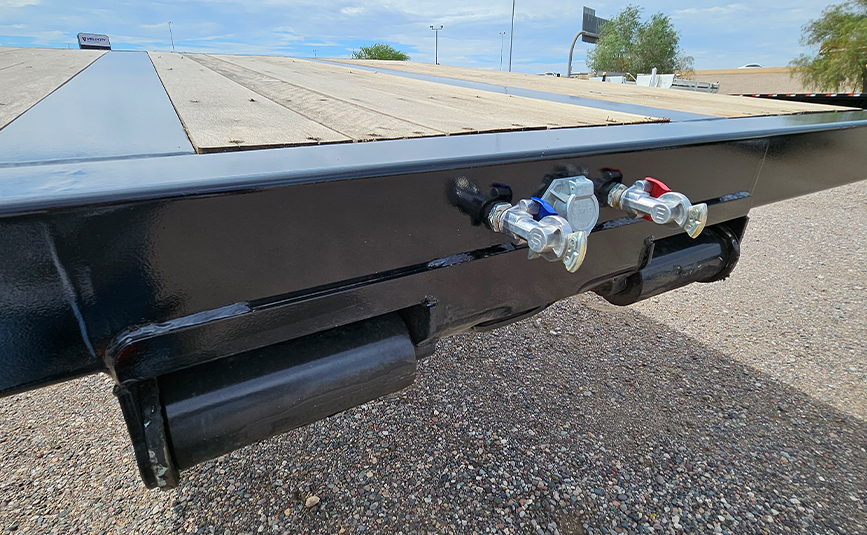

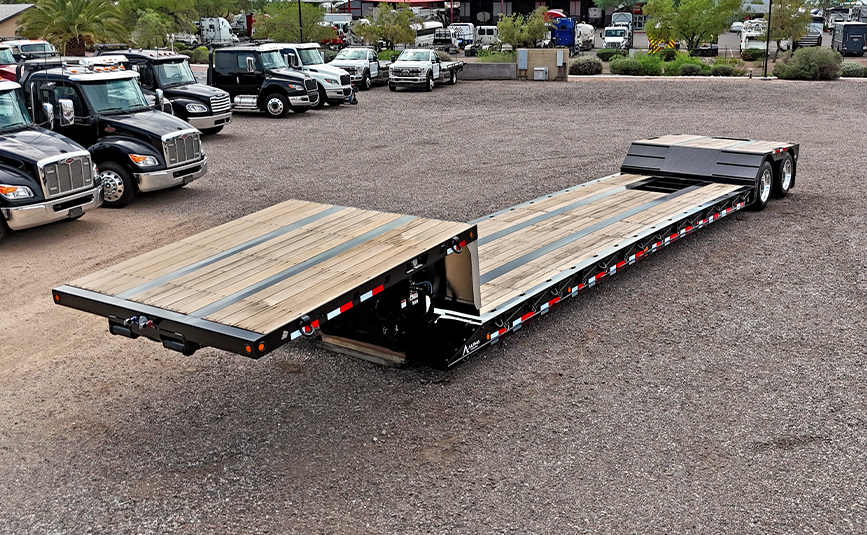

GOOSENECK

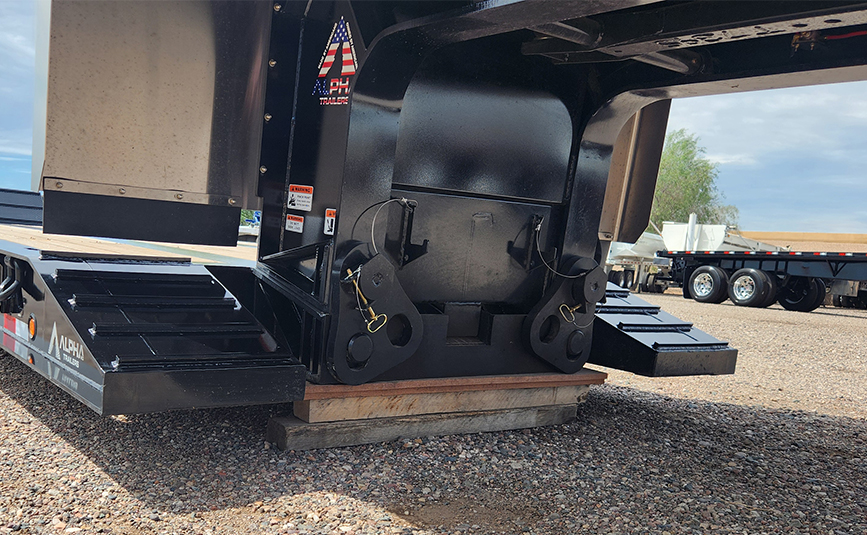

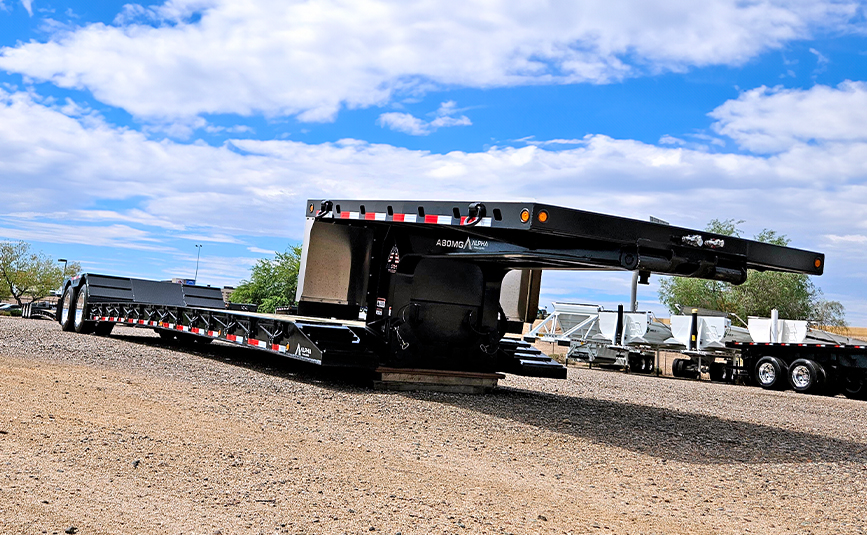

- 10' mechanical detachable neck
- 49" 5th wheel height

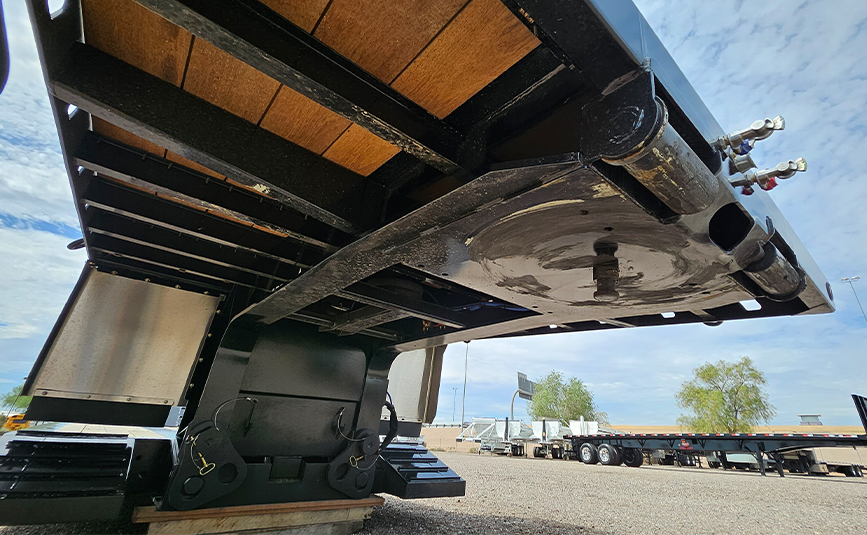

- 16" king pin
- 84" swing clearance
- 2 bent D-rings per side
- Lightning hole on each side of platform
- 2 position neck connection plate (49"/51")
- Stainless Steel Mudflaps

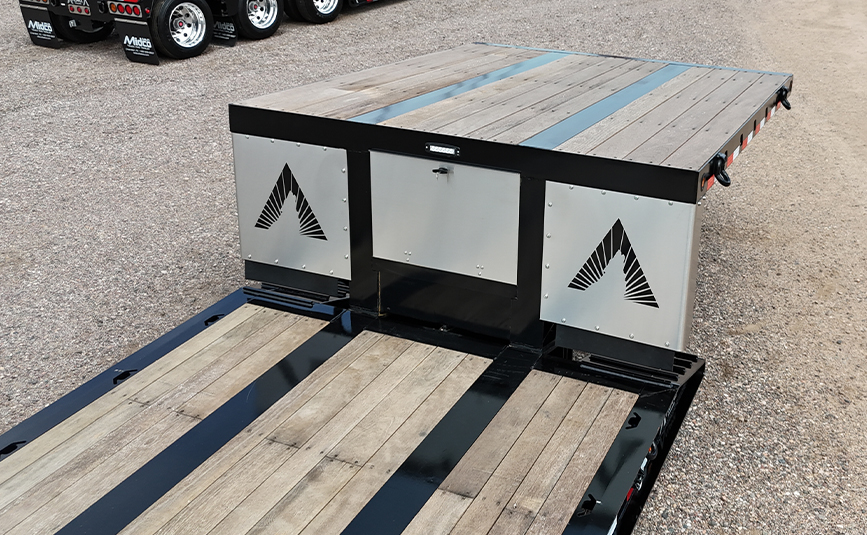

- Toolbox in Back of Neck with Door & Light
- Additional clearance light at rear of neck

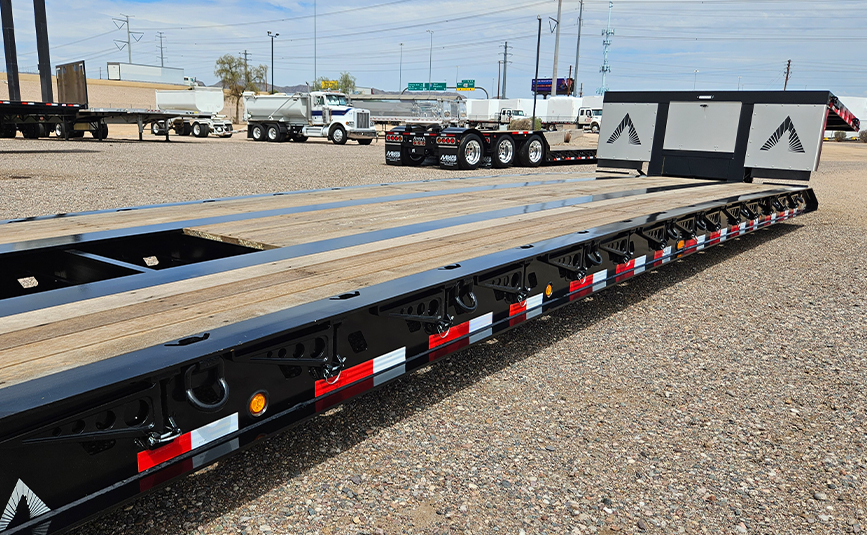

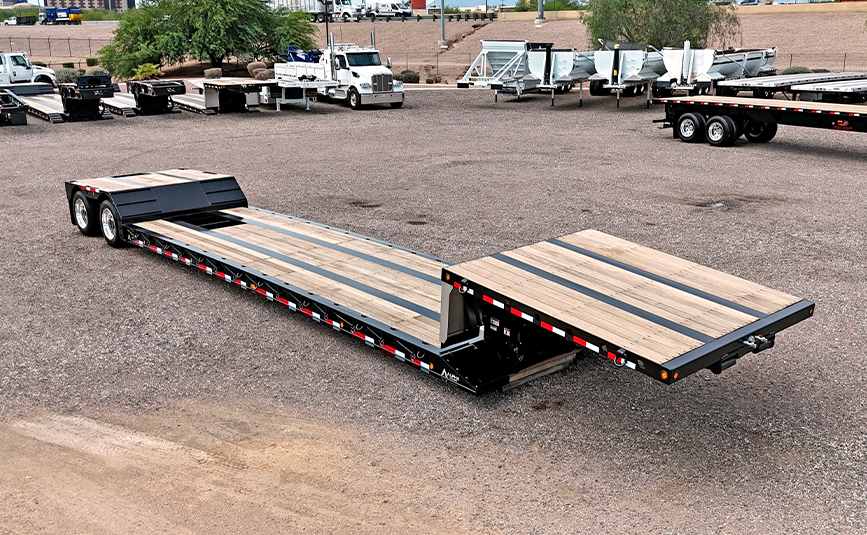

MAIN DECK
- 29' Length
- 12" Fabricated I-Beams
- 18" Loaded Deck Height
- 6" Ground Clearance
- 6"/4" JRI Beam Cross Members ALT on 12" Centers
- 8 Bent D-Rings per Side
- Chain Slots on 24" Centers each side

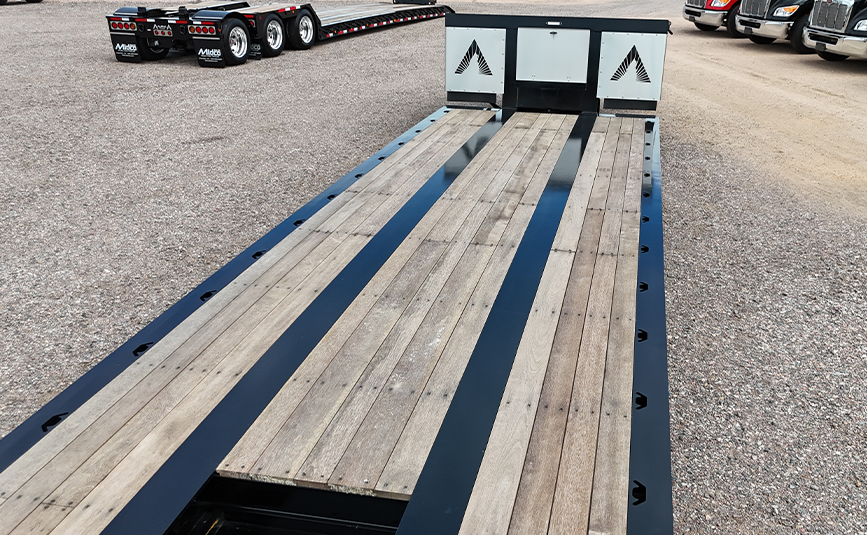

- 1 1/8" Apitong Flush Decking-Full Width
- Front Ramps tapered to 4" W/Traction Bars
- Removable Swingout Outriggers on 12" Centers
- Tool box at rear of deck
- 2 pair additional clearance lights

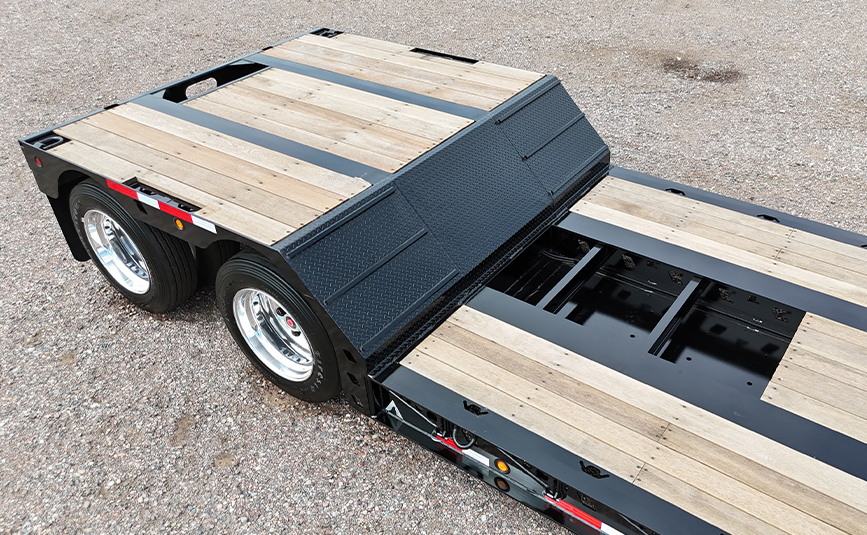

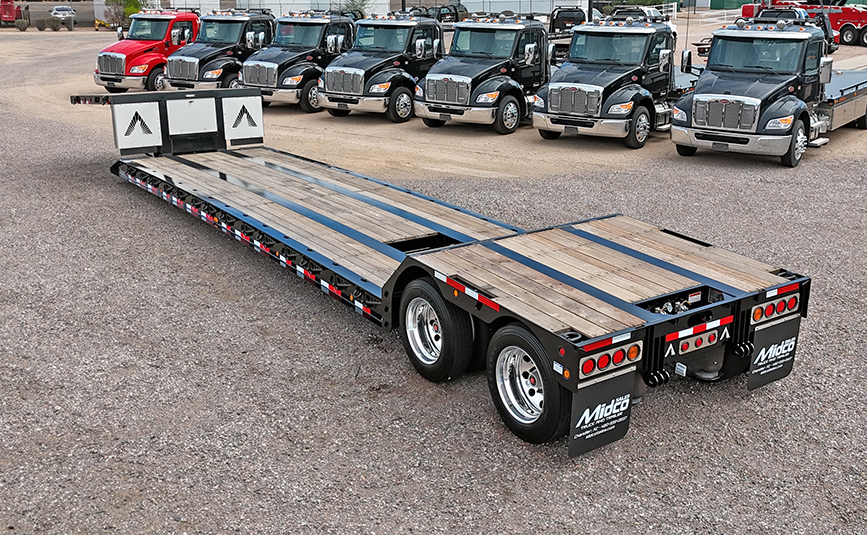

REAR FRAME
- 9' Long
- 40" Loaded Deck Height
- Full Width Decking
- 1 Pair Flag Holders
- 1 pair Stake Pockets in Tail Channel
- 2 pair of chain slots mid platform
- 1 pair pan D-ring at rear
- Frame Reinforcement for Flip Axle
- Additional clearance light at front
AXLES & SUSPENSION
- Dual 25,000 lb Axles
- 54" Axle Spacing
- Cush Air Ride Suspension - 25k
- 16 1/2" x 7" Drum Brakes
- 4S2M ABS
- Spring Brakes on Both Axles
- Raise & Lower Valve

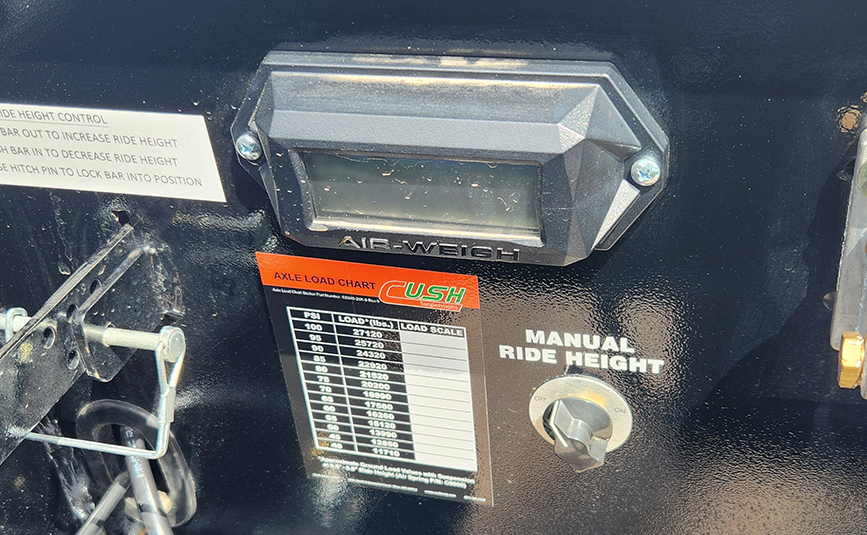

- Manual Ride Height Control

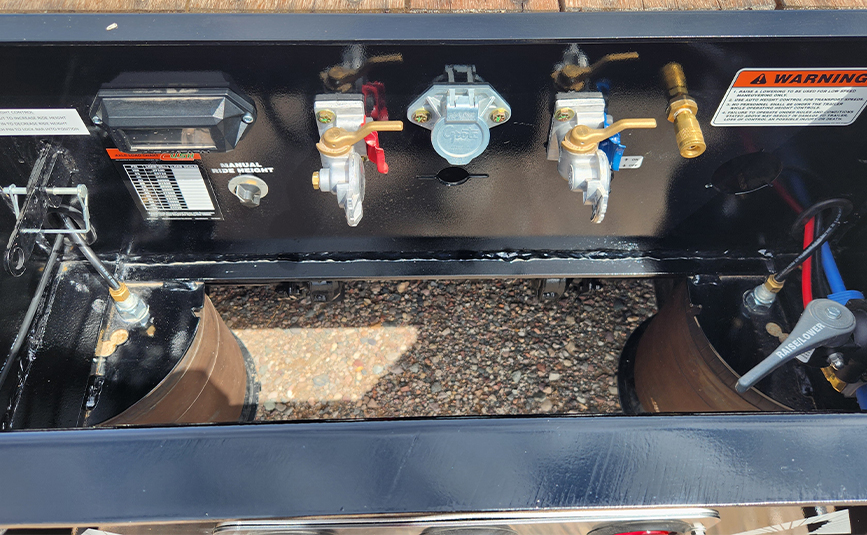

- Airweigh Quickweigh Scale

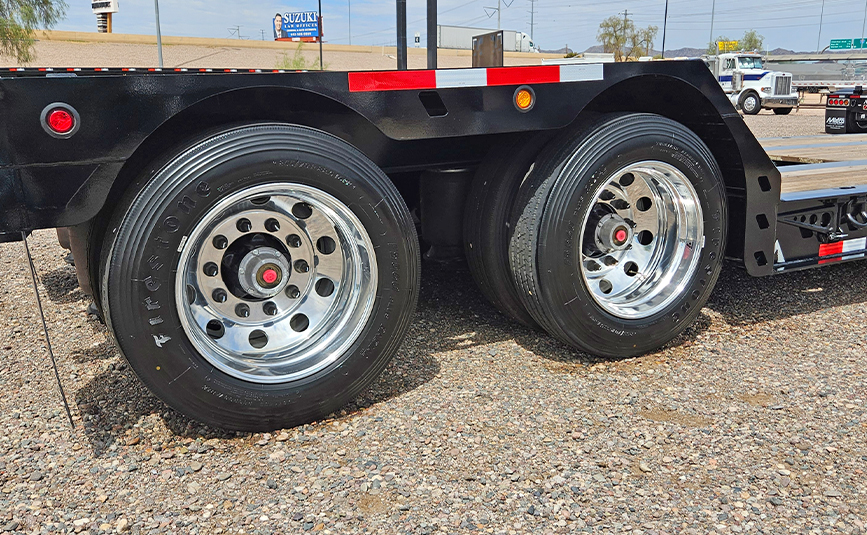

WHEELS & TIRES
- 255/70R22.5 Tires
- 8.25 x 22.5 Polished Aluminum Outer Wheels
LIGHTING

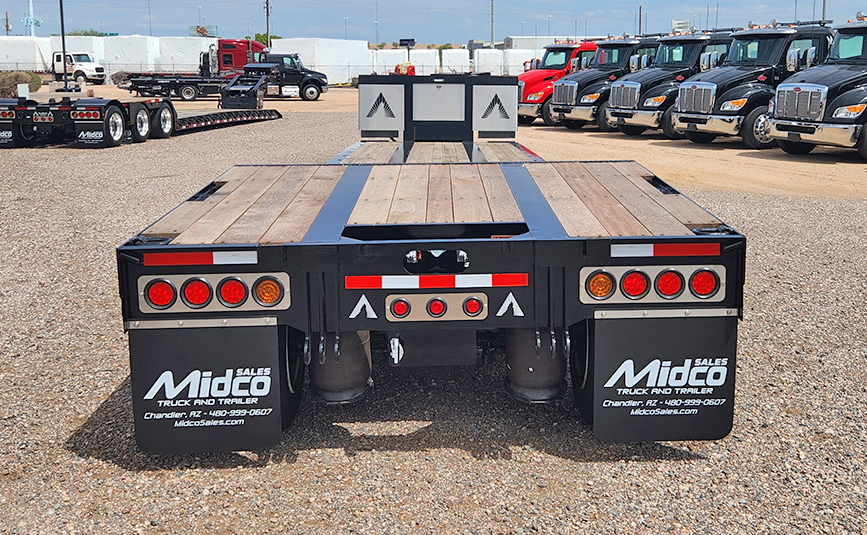

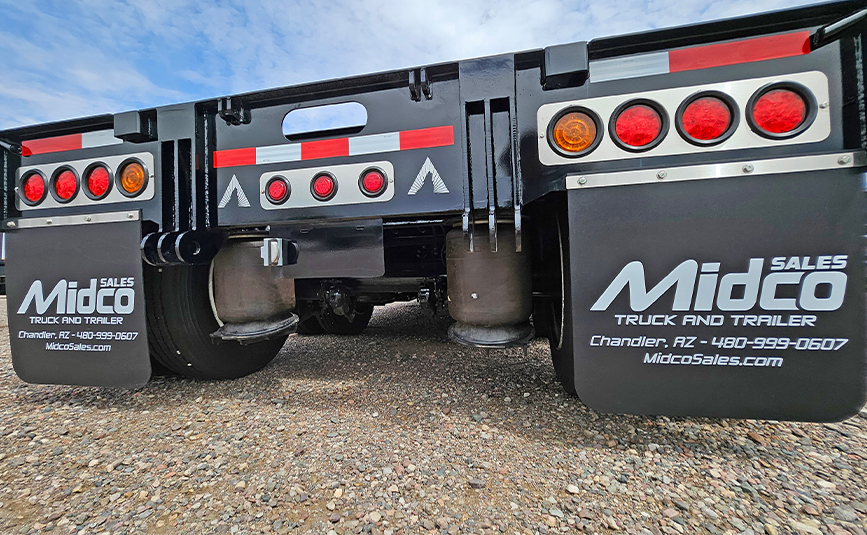

- 2 Tail Light Package with Stainless Steel Covers
- Grote Ultra Blue-Seal Wire Harness
- 4" amber strobe light
- Additional tail light
- Additional clearance light at rear of neck
- 40 ton capacity
- 48' x 102"
- Air Ride Suspension
- Aluminum Outer Wheels
- Mechanical detachable neck
- Tandem axle
- Warranty
